ENSUITE-TRANSLATORS

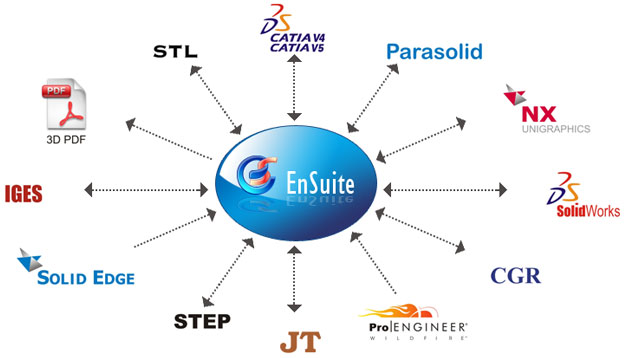

EnSuite provides seamless CAD data interoperability between all major CAD systems in use today. Files can be translated from and to most of the commonly used files formats without the CAD software or license, shaving the cost of MCAD software ownership from the interoperability process. A number of kernel-based and neutral file translators are also available.
EnSuite provides the ability to create an assembly by bringing in parts/assemblies from multiple CAD formats. This is especially useful in a heterogeneous supply chain environment, where suppliers and OEM's work with multi-CAD data towards the same product design.

SUPPORTED FILE FORMATS

Translator Input Format - File Type Version Supported Output Format
CATIA V4 *.model, *.session, (V3RX - V4.2.5) CATIA V5, CATIA Graphics, IGES,
JT, Parasolid, SOLIDWORKS, STEP
STL, NX, DWF and Adobe 3D PDF
CATIA V5 *.CATPart,
*.CATProduct
(V5 R6 to V5-6R2015 (R25)) CATIA Graphics, IGES, JT,
Parasolid, SOLIDWORKS, STEP
STL, NX, DWF and Adobe 3D PDF
CATIA V6 3DEXPERIENCE *.3dxml R2010x - R2015x CATIA V5, CATIA Graphics, IGES,
JT, Parasolid, SOLIDWORKS, STEP
STL, NX, DWF and Adobe 3D PDF
Parasolid *.x_t, *.xmt_txt,
*.x_b, *.xmt_bin
(28.0 and lower) CATIA V5, CATIA Graphics, IGES,
JT, SOLIDWORKS, STEP, STL,
NX, DWF and Adobe 3D PDF
IGES *.igs, *.iges (5.3) CATIA V5, CATIA Graphics, JT,
Parasolid, SOLIDWORKS, STEP,
STL, NX, DWF and Adobe 3D PDF
JT *.jt (10 and lower) CATIA V5, CATIA Graphics, IGES,
Parasolid, SOLIDWORKS, STEP,
STL, NX, DWF and Adobe 3D PDF
Creo *.prt, *.prt.*, *.asm.*,
*.asm, *.xpr, *.xas
ProE 2001 - Creo 3.0 CATIA V5, CATIA Graphics, IGES,
JT, Parasolid, SOLIDWORKS, STEP,
STL, NX, DWF and Adobe 3D PDF
SOLIDWORKS *.sldprt
*.sldasm
2001Plus - 2016 CATIA V5, CATIA Graphics, IGES,
JT, Parasolid, STEP, STL,
NX, DWF and Adobe 3D PDF
SOLID EDGE *.par, *.asm, *.psm (V18 - ST9) CATIA V5, CATIA Graphics, IGES,
JT, Parasolid, SOLIDWORKS, STEP,
STL, DWF and Adobe 3D PDF
STEP *.stp, *.step (AP203,AP214) CATIA V5, CATIA Graphics, IGES,
JT, Parasolid, SOLIDWORKS, STL,
NX, DWF and Adobe 3D PDF
NX *.prt (13 - NX 10) CATIA V5, CATIA Graphics, IGES,
JT, Parasolid, SOLIDWORKS, STEP,
STL, DWF and Adobe 3D PDF
CATIA Graphics *.cgr (V5 R10 to V5-6R2015 (R25)) JT,STL, DWF and Adobe 3D PDF
Autodesk Inventor *.ipt, *.iam (R11, 2008 to 2017) CATIA V5, CATIA Graphics,
IGES, JT, Parasolid, SOLIDWORKS,
STEP, STL, NX, DWF and Adobe 3D PDF
Autodesk Design Review *.dwf, *.dwfx DWF 6.01, DWF 6.2,
DWF 6.21, and DWFx 7
CATIA Graphics, JT, STL
and Adobe 3D PDF
STL *.STL CATIA Graphics, JT, DWF
and Adobe 3D PDF
